Turbo Gun Nozzles

Our Turbo Gun Nozzles are grouped as Ceramic Rotor and Tungsten Rotor Gun nozzles.

You can see the nozzle models and technical specifications of each group under the Turbo Gun Nozzle groups below. Contact us, let us know your problems/needs, and we will determine the most suitable Turbo Gun Nozzles for your needs.

Contact Us:   (+90) 312 394 12 70      (+90) 532 471 29 58      eb@ebsujeti.com.tr

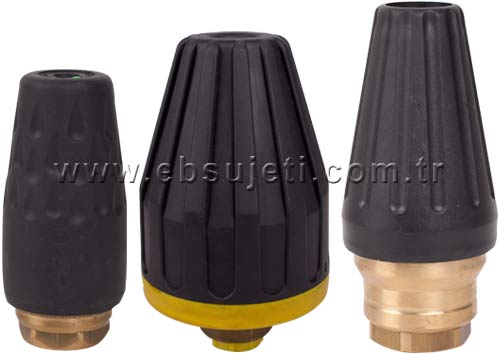

Turbo Nozzle With Ceramic Rotor (200, 350, 400 Bar)

Turbo Nozzle With Ceramic Rotor (200, 350, 400 Bar)

Working Pressure : 500, 1500 bar

Specifications
  • -
Pdf Dosyası
Type Pressure Hole Diameter Part No
Bar mm
Turbo 200 200 0.90 95.28.5375
Turbo 200 200 1.10 95.28.5385
Turbo 200 200 1.20 95.28.5395
Turbo 200 200 1.35 95.28.5405
Turbo 200 200 1.50 95.28.5420
Turbo 350 350 1.20 95.28.6895
Turbo 350 350 1.30 90.45.1413
Turbo 350 350 1.80 95.28.6945
Turbo 400 400 1.30 90.00.0340

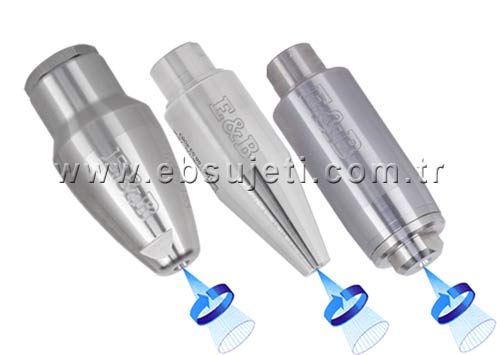

Turbo Nozzle With Tungsten Rotor (500-1500 Bar)

Turbo Nozzle With Tungsten Rotor (500-1500 Bar)

Working Pressure : 500, 1500 bar

Specifications
  • -
Pdf File
Type Rotor Hole Diameter Driving Tube Part No Lance Connection
mm mm
Turbo500 B 1.10 (030) - 90.45.2311 G1/4
1.20 (040) - 90.45.2310
1.40 (055) - 90.45.2312
1.45 (060) - 90.45.2313
Type Rotor Hole Diameter Driving Tube Part No Lance Connection
mm mm
Turbo 800 A 0.80 2 x 0.80 88.53.6308 G3/8"
0.85 2 x 0.80 *
0.95 2 x 1.00 *
1.05 2 x 1.20 *
1.10 2 x 1.40 88.53.6312
1.20 2 x 1.80 *
1.25 2 x 1.80 88.53.6314
1.35 2 x 2.40 90.00.0213
1.40 2 x 2.40 88.53.7842
1.45 2 x 2.60 *
1.50 2 x 2.60 88.53.4079
1.60 2 x 2.80 *
1.65 2 x 3.00 *
1.75 2 x 3.00 90.00.0214
1.80 2 x 3.20 88.53.4082
2.00 4 x 3.00 *
2.05 4 x 3.00 88.53.4083
Type Rotor Hole Diameter Driving Tube Part No Lance Connection
mm mm
Turbo 1000 A 0.80 2 x 0.80 90.00.0217 G3/8" BSP
1.00 2 x 1.20 90.00.0218
1.05 2 x 1.20 90.00.0219
1.10 2 x 1.40 90.00.0220
1.25 2 x 1.80 90.00.0222
1.35 2 x 2.40 90.00.0223
1.40 2 x 2.40 90.00.0224
1.50 2 x 2.60 90.00.0226
Type Fişek Delik Çapı Besleme Burcu Kod No Namlu Bağlantı Tipi
mm mm
Turbo 1500 A 0.40 2 x 0.40 88.53.8866 M14x1,5 LH
0.80 2 x 0.80 90.00.0216
1.00 2 x 1.20 90.00.0242
1.05 2 x 1.20 90.00.0243
1.10 2 x 1.40 88.53.4095
1.25 2 x 1.80 88.53.4098
1.35 2 x 2.40 88.53.4099

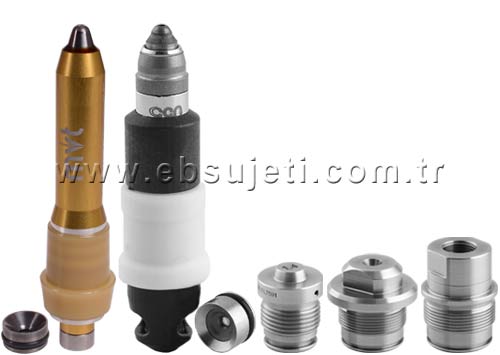

Turbo Nozzle 500 - 1500 Spare Part List

Turbo Nozzle 500 - 1500 Spare Parts

Working Pressure : 500, 1500 bar

Rotor Set : Rotor + Valve Seal with O-ring

Specifications
  • -
* not kept in stock.
Rotor Hole Diameter Part No Driving Tube Part No
mm mm
0.40 88.53.9220 2 x 0.40 88.53.9221
0.60 * 2 x 0.60 *
0.65 * 2 x 0.65 *
0.80 88.53.4103 2 x 0.80 88.53.5295
0.85 * 2 x 0.80 *
0.90 88.53.5674 2 x 1.00 88.53.7588
0.95 * 2 x 1.00 *
1.00 88.53.6704 2 x 1.20 88.53.7590
1.05 88.53.5110 2 x 1.20 88.53.7590
1.10 88.53.6698 2 x 1.40 88.53.7591
1.15 * 2 x 1.40 *
1.20 * 2 x 1.80 *
1.25 88.53.4106 2 x 1.80 88.53.7592
1.30 * 2 x 2.40 *
1.35 88.53.4108 2 x 2.40 88.53.4118
1.40 88.53.4109 2 x 2.40 88.53.4118
1.50 88.53.4110 2 x 2.60 88.53.7593
1.55 * 2 x 2.80 *
1.60 * 2 x 2.80 *
1.65 * 2 x 3.00 *
1.75 88.53.4113 2 x 3.00 88.53.7595
1.80 88.53.4114 2 x 3.20 88.53.4119
2.00 88.53.4115 2 x 3.00 88.53.5532
2.05 88.53.6330 2 x 3.00 88.53.5532
500 B Rotor Hole Diameter Part No Driving Tube Part No
mm mm
1.10 90.00.0143 - -
1.20 90.00.0142 - -
1.40 90.00.0144 - -
1.45 90.00.0145 - -
Body Connection Components Part No
Front Cover 94.00.0043
Inlet Cover G 3/8" BSP 94.00.0042
Inlet Cover 14 x 1.5 LH 94.00.0040
Sealing Components Part No
Front + Inlet Cover O-ring 95.00.0004
Drive Tube O-ring 95.00.0005
Valve Seat O-ring 95.00.0006
