Max. Pressure : 500-1450 bar
Hose Inner Diameter : 6-25 DN mm
Outer Diameter Ø : 17.6-41.2 mm
Length : 20 mm
İvedik Org. San. Böl. 1444. Sok. No: 8 Ostim-Ankara-Türkiye
-
Phone
+90 312 394 12 70 -
eb@ebsujeti.com.tr

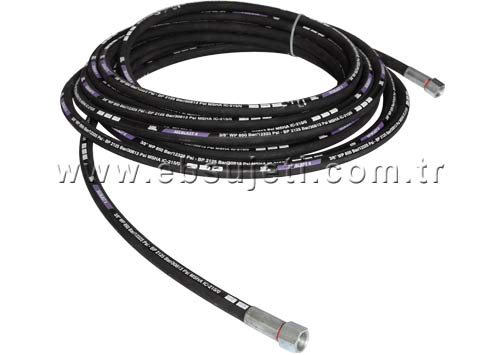

High Pressure Rubber Hoses
You can see the technical specifications of our Rubber Based High Pressure Hoses in the table below.
Contact Us: (+90) 312 394 12 70 (+90) 532 471 29 58 eb@ebsujeti.com.tr
| Hose Inner Diameter DN |
Max. Working Pressure | Outer Diameter | Fittings | Length | Part No |
|---|---|---|---|---|---|
| ø mm | bar | ø mm | m | ||
| 6 | *1000 | 17,6 | 1/4(E)-M24x1,5 | 20 | 99.00.0018 |
| *1250 | 17,6 | 1/4(E)-M24x1,5 | 20 | 99.00.0019 | |
| 10 | 500 | 22 | 1/2 DKO Hex. =27 | 20 | 88.52.7541 |
| 850 | 21,3 | M 22x1,5 DKO Hex. =27 | 20 | 88.52.7544 | |
| 1250 | 20,4 | M 24x1,5 DKO Hex. =30 | 20 | 88.52.7546 | |
| 12/13 | 800 | 24,6 | M 22x1,5 DKL Hex. =27 | 20 | 88.52.7542 |
| 1100 | 24,6 | M 24x1,5 DKO Hex. =32 | 20 | 88.52.7545 | |
| 1450 | 27,8 | M 24x1,5 DKO Hex. =32 | 20 | 88.52.7547 | |
| 19 | *750 | 32 | M 36x2 DKO Hex. =41 | 20 | 99.00.0020 |
| 1100 | 32 | M 36x2 DKO Hex. =46 | 20 | 88.52.7527 | |
| *1350 | 35,4 | M 36x2 DKO Hex. =46 | 20 | 99.00.0027 | |
| 25 | *700 | 38,4 | M 42x2 DKO Hex. =50 | 20 | 99.00.0026 |
| *900 | 41,2 | M 42x2 DKO Hex. =50 | 20 | 99.00.0021 |
