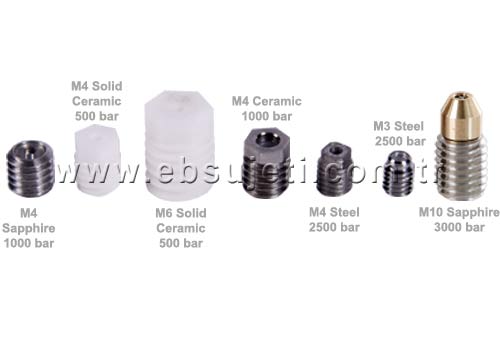

Insert Nozzles

You can see the technical specifications of our Insert Nozzles in the table below.

Max. Pressure : 500, 1000, 2500, 3000 bar

Pdf File

Hole Diameter	M4 Sapphire 1000 bar	M4 Solid Ceramic 500 bar	M6 Solid Ceramic 500 bar	M4 Ceramic 1000 bar	M4 Steel 2500 bar	M3 Steel 2500 bar	M10 Sapphire 3000 bar
mm	Part No	Part No	Part No	Part No	Part No	Part No	Part No
0.25	-	-	-	-	-	-	90.45.7700
0.30	-	-	-	90.45.7400	-	90.45.2370	90.45.7710
0.40	-	-	-	90.45.7410	-	90.45.2371	90.45.7720
0.50	90.45.2347	-	-	90.45.7420	90.45.7800	90.45.2372	90.45.7730
0.60	90.45.2348	90.00.0104	-	90.45.7450	90.45.7801	90.45.2373	-
0.70	90.45.2349	-	-	90.45.7480	90.45.7802	90.45.2374	-
0.80	90.45.2333	90.00.0105	-	90.45.7490	90.45.7803	90.45.2375	-
0.90	90.45.2334	-	-	90.45.7500	90.45.7804	90.45.2376	-
1.00	90.45.2335	90.00.0106	90.00.0107	90.45.7510	90.45.7805	90.45.2377	-
1.10	90.45.2350	-	-	90.45.7520	90.45.7806	90.45.2378	-
1.20	90.45.2351	-	90.00.0108	90.45.7530	90.45.7807	90.45.2379	-
1.30	90.45.2352	-	-	90.45.7540	90.45.7808	90.45.2380	-
1.40	90.45.2353	-	90.00.0109	90.45.7550	90.45.7809	-	-
1.50	90.45.2354	-	90.00.0110	90.45.7560	90.45.7810	-	-
1.55	90.45.2355	-	-	-	90.45.7811	-	-
1.60	90.45.2356	-	-	-	90.45.7812	-	-
1.70	90.45.2357	-	-	-	-	-	-
