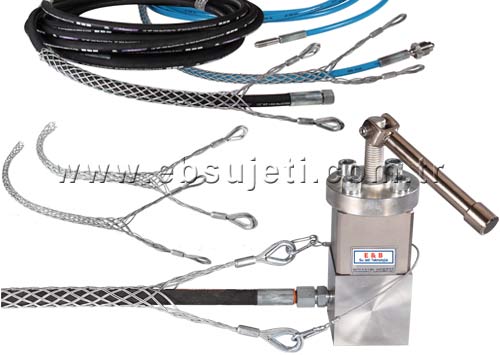

Hose Securing Grips
You can see the technical specifications of our Hose Securing Grips in the table below.
Contact Us: (+90) 312 394 12 70 (+90) 532 471 29 58 eb@ebsujeti.com.tr
Specifications
- Hose Securing grips are used for safe fixing of high-pressure hoses. Sudden occurring energies, for example by loosing of a hose from pressure regulator, foot valve, high pressure gun etc. could lead so serious injuries and material damages. Hose securing grips help to prevent this.
| Description | Length | Material | Part No | Suitable For Hose Outer Diameter | Breaking Strenght | |
|---|---|---|---|---|---|---|
| Braid | Overall Length | |||||
| Hose Securing Grip | 600 mm | 720 mm | Carbon Steel | 00.06.0670 | 10-15 mm | 10.2 KN |
| Hose Securing Grip | 600 mm | 750 mm | Carbon Steel | 00.60.0660 | 15-20 mm | 20.4 KN |
| Hose Securing Grip | 600 mm | 750 mm | Carbon Steel | 00.60.0651 | 20-25 mm | 20.4 KN |
| Hose Securing Grip | 630 mm | 790 mm | Carbon Steel | 00.60.0653 | 25-30 mm | 24.3 KN |
| Hose Securing Grip | 630 mm | 800 mm | Carbon Steel | 00.60.6040 | 30-40 mm | 35.1 KN |
| Hose Securing Grip | 630 mm | 850 mm | Carbon Steel | 00.60.6030 | 40-50 mm | 48.0 KN |
| Hose Securing Grip | 650 mm | 850 mm | Carbon Steel | 00.60.0620 | 50-60 mm | 48.0 KN |
