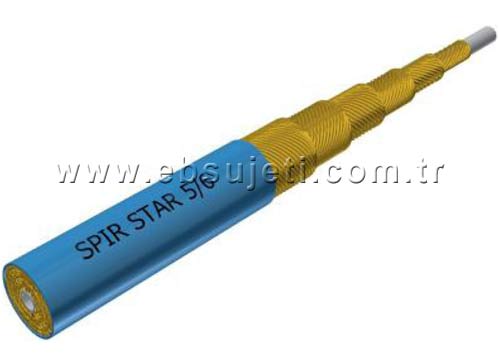

Thermoplastic Hose Type 5/6

Contact Us:   (+90) 312 394 12 70      (+90) 532 471 29 58      eb@ebsujeti.com.tr

Thermoplastic Hose Type 5/6

Part No : 00.00.1151 (10 m)

Applications

Waterblast : Heat exchanger tube cleaning, surface preparation (concrete removal, surface cleaning of buildings, paint removal), tank and vessel cleaning

Hydraulics : Bolt tensioning, pressure test equipment (valves, tooling and control panels), hydraulic tools (instrumentation packages for gauges, control of service equipment, hydraulic jacks, hydraulic tools)

Max. Working Pressure : 2500 bar

Inner Diameter : 5 mm

Outer Diameter : 13.2 mm

Lenght : -

Specifications
  • Inner Core : Polyoxymethylene (POM)
  • Pressure Support : 6 layers of high-tensile steel wire
  • Outer Cover : Polyamide (PA)
  • Colour : Blue, other colours optional.
  • Temperature : [-30 ºC to +60 ºC]
Pdf File
*Safety factor between burst pressure and working pressure as well as test pressure depends on operating conditions. For gaseous media a safety factor of 1:6 is to be applied and the outer cover is to be pricked. The indicated working pressure refers to the hos only. Depending on the used fitting the permitted working pressure of a hose assembly can be less.
Inner Diameter Outer Diameter Working Pressure * Burst Pressure Bend Radius Weight Inner Diameter of Insert Outer Cover Material Outer Cover Diameter
ø mm ø mm bar bar mm kg/m ø mm ø mm
4.8 13.2 2500 6250 200 0.450 2.5 Carbon Steel 17.8
Hose Fitting
FITTING
Fitting Type: Male
Thread: M14x1.5 LH
Material: Carbon Steel
