Thermoplastic Hose Type 4/4

Contact Us:   (+90) 312 394 12 70      (+90) 532 471 29 58      eb@ebsujeti.com.tr

Thermoplastic Hose Type 4/4

Part No : 00.70.0453 (10 m)-1/4"x28UNF LH

Part No : 00.70.0560 (10 m)-1/4"x28UNF LH

Part No : 00.70.0550 (10 m)-G1/8" Male

Part No : 00.70.0452 (10 m)-G1/4" Female

Part No : 00.70.0515 (15 m)-G1/8" Male

Part No : 00.70.0500 (20 m)-G1/8" Male

Part No : 00.70.0460 (20 m)-1/4x28UNF LH

Applications

Waterblast : Heat exchanger tube cleaning, Water Jet Cutting

Hydraulics : Pressure test equipment (valves, tooling and control panels), hydraulic tools (instrumentation packages for gauges, control of service equipment, hydraulic jacks, hydraulic tools)

Max. Working Pressure : 2200 bar

Inner Diameter : 4 mm

Outer Diameter : 10.3 mm

Lenght : 10, 15, 20 m

Specifications
  • Inner Core : Polyoxymethylene (POM)
  • Pressure Support : 4 layers of high-tensile steel wire
  • Outer Cover : Polyamide (PA)
  • Colour : Grey, other colours optional.
  • Temperature : [-30 ºC to +60 ºC]
Pdf File
*Safety factor between burst pressure and working pressure as well as test pressure depends on operating conditions. For gaseous media a safety factor of 1:6 is to be applied and the outer cover is to be pricked. The indicated working pressure refers to the hos only. Depending on the used fitting the permitted working pressure of a hose assembly can be less.
Inner Diameter Outer Diameter Working Pressure * Burst Pressure Bend Radius Weight Inner Diameter of Insert Outer Cover Material Outer Cover Diameter
ø mm ø mm bar bar mm kg/m ø mm ø mm
4 10.3 2200 5500 130 0.234 1.8 Carbon Steel 14.7
Hose Fitting

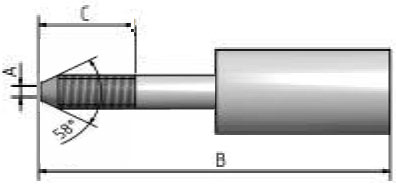

FITTING
Fitting Type: Male
Thread: 1/4"x28UNF LH
Material: Carbon Steel
Hose Fitting

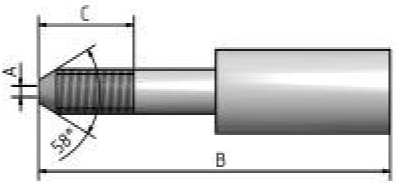

FITTING
Fitting Type: Male
Thread: 3/8"x28UNF LH
Material: Carbon Steel
Hose Fitting

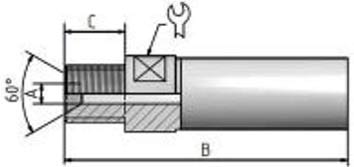

FITTING
Fitting Type: Male
Thread: G1/8"
Material: Carbon Steel
Hose Fitting
FITTING
Fitting Type: Female
Thread: G1/4"
Material: Carbon Steel
