Thermoplastic Hose Type 4/2

Contact Us:   (+90) 312 394 12 70      (+90) 532 471 29 58      eb@ebsujeti.com.tr

Thermoplastic Hose Type 4/2

Part No : 00.70.0000 (5 m)

Part No : 00.70.0050 (10 m)

Applications

Waterblast : Heat exchanger tube cleaning, Water Jet Cutting

Hydraulics : Pressure test equipment (valves, tooling and control panels), hydraulic tools (instrumentation packages for gauges, control of service equipment, hydraulic jacks, hydraulic tools)

Max. Working Pressure : 1200 bar

Inner Diameter : 4 mm

Outer Diameter : 8 mm

Lenght : 5, 10 m

Specifications
  • Inner Core : Polyoxymethylene (POM)
  • Pressure Support : 2 layers of high-tensile steel wire
  • Outer Cover : Polyamide (PA)
  • Colour : Green, other colours optional.
  • Temperature : [-30 ºC to +60 ºC]
Pdf File
*Safety factor between burst pressure and working pressure as well as test pressure depends on operating conditions. For gaseous media a safety factor of 1:6 is to be applied and the outer cover is to be pricked. The indicated working pressure refers to the hos only. Depending on the used fitting the permitted working pressure of a hose assembly can be less.
Inner Diameter Outer Diameter Working Pressure * Burst Pressure Bend Radius Weight Inner Diameter of Insert Outer Cover Material Outer Cover Diameter
ø mm ø mm bar bar mm kg/m ø mm ø mm
4 8 1200 3000 75 0.110 2.5 Carbon Steel 10

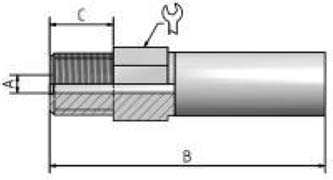

Hose Fitting
FITTING
Fitting Type: Male
Thread: M7
Material: Carbon Steel
