Screw Gun Nozzles

Our Screw Gun Nozzles are grouped as Hexagonal (Stainless Steel), Hexagonal (Tungsten, Sapphire), Hexagonal (Long Type), Sapphire, AV Series Screw Gun nozzles.

You can see the nozzle models and technical specifications of each group under Screw Gun Nozzle groups below. Contact us, let us know your problems/needs, and we will determine the most suitable Screw Gun Nozzles for your needs.

Contact Us:   (+90) 312 394 12 70      (+90) 532 471 29 58      eb@ebsujeti.com.tr

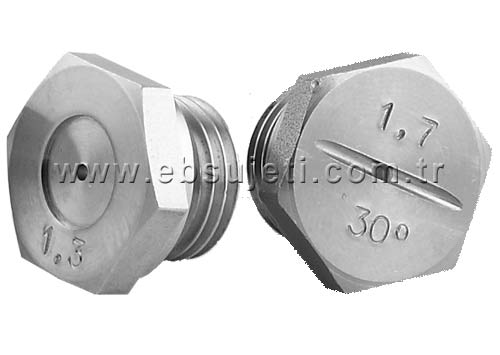

Hexagonal Screw Gun Nozzles (Stainless Steel)

Hexagonal Screw Gun Nozzles (Stainless Steel)

Working Pressure : 750 bar

Thread : G1/4"

Lenght : 12 mm

SW : 17 mm

Round Jet Nozzle, Flat Jet Nozzle

Specifications
  • Stainless Steel, Screw
Pdf File
* not kept in stock.
Hole Diameter Round Jet Nozzle
 Flat Jet Nozzle
Part no according to spray angles
mm Part No 15° 30° 45°
0.70 88.52.7090 88.52.7158 *88.52.7197 *88.52.7236
0.80 88.52.7091 88.52.7159 88.52.7198 *88.52.7237
0.90 88.52.7092 88.52.7160 88.52.7199 88.52.7238
1.00 88.52.7093 88.52.7161 88.52.7200 88.52.7239
1.10 88.52.7094 88.52.7162 88.52.7201 88.52.7240
1.20 88.52.7095 88.52.7163 88.52.7202 *88.52.7242
1.30 88.52.7096 88.52.7164 88.52.7203 *88.52.7243
1.40 88.52.7097 88.52.7165 88.52.7204 88.52.7244
1.50 88.52.7098 88.52.7166 88.52.7205 88.52.7245
1.60 88.52.7099 88.52.7167 88.52.7206 88.52.7246
1.70 88.52.7100 88.52.7168 88.52.7207 88.52.7247
1.80 88.52.7101 88.52.7169 88.52.7208 *88.52.7248
1.90 88.52.7102 88.52.7170 88.52.7209 88.52.7279
2.00 88.52.7103 88.52.7171 88.52.7210 *88.52.7250
2.10 *88.52.7104 *88.52.7172 *88.52.7211 *88.52.7251
2.20 88.52.7105 88.52.7173 88.52.7212 *88.52.7252
2.30 *88.52.7106 *88.52.7174 *88.52.7213 *88.52.7253
2.40 88.52.7107 *88.52.7175 *88.52.7214 *88.52.7254

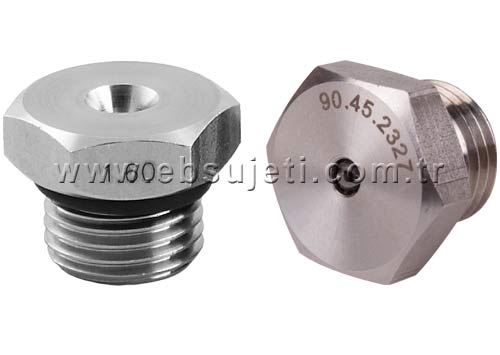

Hexagonal Screw Gun Nozzles (Tungsten, Sapphire)

Hexagonal Screw Gun Nozzles (Tungsten, Sapphire)

Working Pressure : 500 bar (Tungsten), 1000 bar (Sapphire)

Thread : G1/4" BSP

Lenght : 14 mm

SW : 17 mm

Round Jet Nozzle, Flat Jet Nozzle

Specifications
  • Tungsten (Flat), Sapphire (Round)
Pdf File
Hole Diameter Round Jet Nozzle
 Tungsten Flat Jet Nozzle
Part no according to spray angles
mm Part No 20° 30° 40°
0.80 90.45.2317 - - -
0.90 90.45.2318 - - -
1.00 90.45.2319 - - -
1.10 90.45.2320 90.45.2325 - -
1.20 90.45.2321 90.45.2326 - -
1.24 - - 90.45.2327 -
1.30 90.45.2322 - - -
1.35 - - - 90.45.2328
1.40 90.00.0147 90.45.2329 - -
1.45 - - - 90.45.2330
1.50 90.00.0148 90.45.2331 - -
1.55 - - - 90.45.2332
1.60 90.00.0149 - - -
1.70 90.45.2323 - - -
1.80 90.45.2324 - - -

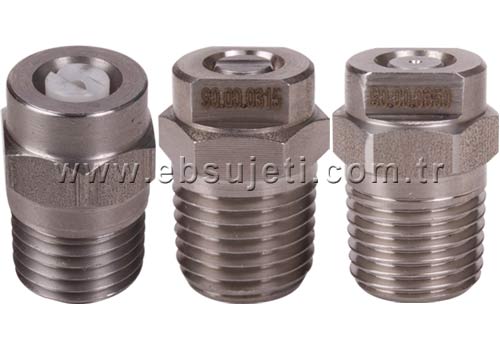

Hexagonal Gun Nozzles (Long Type)

Hexagonal Gun Nozzles (Long Type)

Working Pressure : 500 bar

Thread : G1/4" NPT

Lenght : 22 mm

SW : 14 mm

Round Jet Nozzle, Flat Jet Nozzle. (Stainless Steel or ceramic insert)

Specifications
  • Stainless Steel, with screw
Pdf File
# with ceramic insert.
Hole Diameter Round Jet Nozzle
 Flat Jet Nozzle
Part no according to spray angles
mm Part No 5° 15° 30° 45° 90°
0.80 90.00.0350 - 90.00.0116 90.00.0117 - -
0.90 90.00.0351 - 90.00.0118 90.00.0305 - -
1.00 90.00.0352 90.00.0136 90.00.0300 90.00.0119 # 90.00.0094 -
1.10 90.00.0353 - 90.00.0120 90.00.0310 - -
1.20 90.00.0354 90.00.0135 90.00.0123 90.00.0124 # 90.00.0095 # 90.00.0096
1.30 90.00.0355 - 90.00.0125 90.00.0126 - -
1.40 90.00.0356 - 90.00.0312 90.00.0315 - -
1.50 - 90.00.0046 - - - -
1.70 - 90.00.0233 - - # 90.00.0097 # 90.00.0098
1.80 - - 90.00.0127 - - -
3.00 - - - - - # 90.00.0099
5.00 - - 90.00.0047 - - -

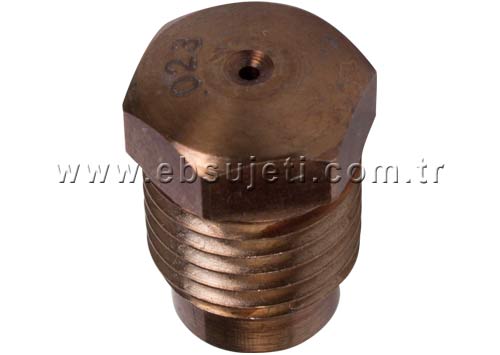

Sapphire Screw Nozzle 2800 Bar

Sapphire Screw Nozzle 2800 Bar

Working Pressure : 2800 bar

Thread : 7/16-20 NF

Lenght : 16.67 mm

SW : 11 mm

Round Jet Nozzle

Specifications
  • Hardened stainless steel, with sapphire screw insert nozzle
Pdf File
* not kept in stock. Flow rate show in blue area.
Part No Hole Diameter Pressure
  mm 1400 1500 1700 1800 1900 2100 2200 2300 2500 2600 2800
* 0.23 1 1 1 1 1 1 1 1 1 1 1
21.00.5809 0.25 1 1 1 1 1 1 2 2 2 2 2
21.00.5810 0.28 1 2 2 2 2 2 2 2 2 2 2
* 0.30 2 2 2 2 2 2 2 2 2 2 2
21.00.5830 0.33 2 2 2 2 2 2 2 2 2 2 2
21.00.5840 0.36 2 2 2 2 2 3 3 3 3 3 3
21.00.5850 0.38 2 3 3 3 3 3 3 3 3 3 3
21.00.5860 0.41 3 3 3 3 3 3 3 3 4 4 4
21.00.5870 0.43 3 3 3 3 3 4 4 4 4 4 4
21.00.5880 0.46 3 3 4 4 4 4 4 5 5 5 5
21.00.5890 0.48 4 4 4 4 5 5 5 5 5 5 5
21.00.5900 0.51 4 5 5 5 5 5 5 5 6 6 6
21.00.5910 0.53 5 5 5 5 5 6 6 6 6 6 6
21.00.5920 0.56 5 5 6 6 6 6 6 6 7 7 7
21.00.5930 0.58 6 6 6 6 6 6 7 7 7 8 8
21.00.5940 0.61 6 6 6 7 7 7 8 8 8 8 8
21.00.5950 0.64 6 7 7 8 8 8 8 8 9 9 9
21.00.5960 0.66 7 7 8 8 8 9 9 9 10 10 10
21.00.5970 0.69 8 8 8 9 9 10 10 10 10 11 11
* 0.71 8 9 9 10 10 10 10 11 11 11 12
* 0.79 10 11 11 11 12 12 13 13 13 14 14
21.00.5980 0.84 11 12 13 13 13 14 14 15 15 16 16
* 0.86 12 13 13 14 14 15 15 16 16 17 17
21.00.5990 0.89 13 13 14 14 15 16 16 17 17 18 18

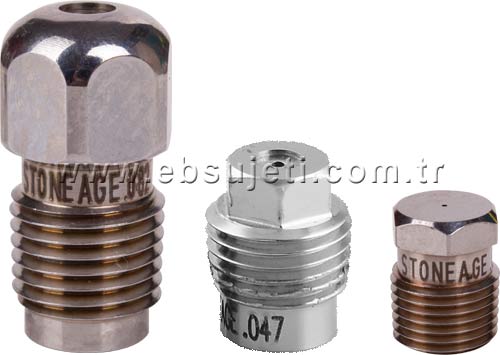

AV Type Nozzles (Round Jet) 1500 Bar

AV Type Nozzles (Round Jet) 1500 Bar

Working Pressure : 1500 bar

AV2 : 1/8 NPT

AVF4 : 1/4 NPT

AV4 : 1/4 NPT

Round Jet Nozzle

Specifications
  • Hardened stainless steel
Pdf File
* not kept in stock. Flow rate show in blue area.
AV2 AVF4 AV4 Hole Diameter Pressure
Bar
Part No Part No Part No mm 550 700 830 970 1000 1100 1200 1400 1500
* * * 0.46 3 3 4 4 4 4 5 5 5
20.99.0870 * * 0.51 4 4 5 5 5 6 6 6 6
20.99.0880 * * 0.56 5 5 5 6 6 6 6 7 7
20.99.0890 * * 0.61 5 6 6 7 7 8 8 8 9
20.99.0900 * 20.99.1150 0.66 6 7 8 8 8 9 9 10 10
20.99.0910 * 20.99.1160 0.74 8 9 10 10 11 11 11 12 13
20.99.0920 * 20.99.1170 0.81 10 11 11 13 13 13 14 15 16
20.99.0930 * * 0.89 11 13 14 15 15 16 17 18 19
* 20.99.1430 * 0.97 13 15 16 18 18 19 20 21 22
20.99.0950 20.99.1440 20.99.1200 1.07 16 18 20 21 22 23 24 26 27
20.99.0960 20.99.1450 20.99.1210 1.19 20 22 25 27 28 29 30 32 34
20.99.0970 20.99.1460 20.99.1220 1.32 25 28 30 33 34 35 37 38 42
20.99.0980 20.99.1470 20.99.1230 1.45 30 33 37 38 42 42 46 46 50
20.99.0990 20.99.1480 20.99.1240 1.60 37 42 46 50 50 53 53 57 61
20.99.1000 * 20.99.1250 1.78 46 50 53 57 61 61 65 69 72
* * 20.99.1260 1.91 50 57 65 69 72 72 76 80 88
* * 20.99.1270 2.08 53 61 69 72 76 76 83 88 91
* * * 2.29 65 72 80 88 91 95 98 102 110
* * * 2.49 80 88 95 102 106 110 117 125 129
* * * 2.69 91 102 110 121 125 129 136 144 151
* * 20.99.1310 2.92 106 121 132 140 148 151 159 170 178
* * * 3.18 125 140 155 167 174 178 189 201 208
* * * 3.43 148 167 182 197 201 208 220 235 246
* * * 3.68 170 189 208 227 235 242 257 269 284
* * * 3.94 193 216 238 257 265 276 291 307 322
* * * 4.19 220 246 269 291 303 310 329 348 367
