Rotary Hose Nozzles

Our Rotary Hose Nozzles are grouped as Tars Rotary Hose Nozzles Type A, Radial Rotary Hose Nozzles Type B, Rotary Hose Nozzles Type C, Cross Jet Nozzles Type D, Sewer Cleaning Nozzles Type E

You can see the nozzle models and technical specifications of each group under the Rotary Hose Nozzle groups below. Contact us, let us know your problems/needs, and we will determine the most suitable Rotary Hose Nozzles for your needs.

Contact Us:   (+90) 312 394 12 70      (+90) 532 471 29 58      eb@ebsujeti.com.tr

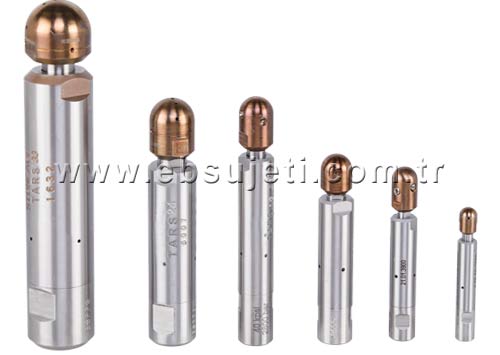

Tars Rotary Hose Nozzles Type A

Tars Rotary Hose Nozzles Type A

Max. Pressure : 1250, 1400, 1500, 2800 bar

Hose Connection : M7, 1/8", 1/4", 3/8", 1/2", 3/8"x24 UNF-LH, 14X1.5 LH

Specifications
  • Uses 3 different types of spray heads.
Pdf File
Body Hose Connection TR-A
(for thin and hard scale)		 TR-B
(for clogged tubes)		 TR-C
(for both types)
TR-9.5 Ø10 mm
(1500 bar)
(90.50.3000)		 M7 042B (1000-1500 Bar)
90.55.4020 (19/23 l/min)		 043B (1000-1500 Bar)
90.55.4025 (21/25 l/min)		 044-1 (1000-1500 Bar)
90.55.4030 (27/30 l/min)
TR-13 Ø13 mm
(1250 Bar)
(90.50.3005)		 1/8" 042C (1000-1500 Bar)
90.55.4070 (27/34 l/min)		 043C (1000-1500 Bar)
90.55.4075 (42/53 l/min)		 044C (1000-1500 Bar)
90.55.4080 (27/30 l/min)
TR-13 Ø13 mm
(1500 Bar)
(90.50.3010)		 3/8"x24 UNF LH 042C (1000-1500 Bar)
90.55.4070 (27/34 l/min)		 043C (1000-1500 Bar)
90.55.4075 (42/53 l/min)		 044C (1000-1500 Bar)
90.55.4080 (27/30 l/min)
TR-13 Ø13 mm
(2800 Bar)
(21.01.3900)		 3/8"x24 UNF LH 442D (2100-2800 Bar)
90.55.4092 (21/23 l/min)		 443D (2100-2800 Bar)
90.55.4094 (21/23 l/min)		 -
TR-18 Ø18 mm
(1400 Bar)
(90.50.3020)		 1/4" 042B (700-1000 Bar)
90.55.4110 (30/38 l/min)

042C (1000-1500 Bar)
90.55.4135 (42/53 l/min)

042D (1000-1500 Bar)
90.55.4140 (30/38 l/min)		 043A (700-1000 Bar)
90.55.4145 (42/53 l/min)

043B (700-1000 Bar)
90.55.4120 (30/38 l/min)

043D (1000-1500 Bar)
90.55.4150 (30/38 l/min)		 044A (700-1000 Bar)
90.55.4125 (42/53 l/min)

044B (700-1000 Bar)
90.55.4130 (30/38 l/min)

044C (1000-1500 Bar)
90.55.4155 (42/53 l/min)
TR-18 Ø18 mm
(2800 Bar)
(90.50.3040)		 M14x1.5 LH 442A (2100-2800 Bar)
90.55.4200 (30/32 l/min)		 443A (2100-2800 Bar)
90.55.4210 (30/32 l/min)		 -
TR-24 Ø24 mm
(1500 Bar)
(90.50.3122)		 G3/8" 042B (700-1000 Bar)
90.55.4320 (57/72 l/min)

042C (700-1000 Bar)
90.55.4325 (42/53 l/min)

042E (1000-1500 Bar)
90.55.4335 (57/64 l/min)

042F (1000-1500 Bar)
90.55.4340 (42/53 l/min)		 - 044E (1000-1500 Bar)
90.55.4365 (57/64 l/min)

044F (1000-1500 Bar)
90.55.4370 (42/53 l/min)
TR 33 Ø33 mm
(1500 Bar)
(90.50.3180)		 G1/2" - - 044E (700-1000 Bar)
90.55.4485 (57/72 l/min)

044H (1000-1500 Bar)
90.55.4505 (57/64 l/min)

044I (1000-1500 Bar)
90.55.4510 (43/53 l/min)

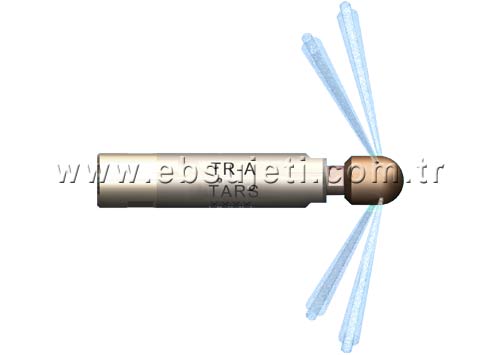

Rotary Hose Nozzle TARS TR-A
TARS TR-A

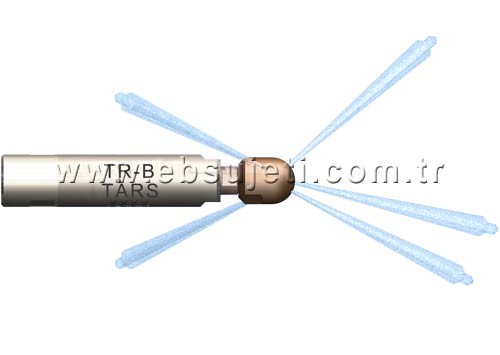

Rotary Hose Nozzle TARS TR-B
TARS TR-B

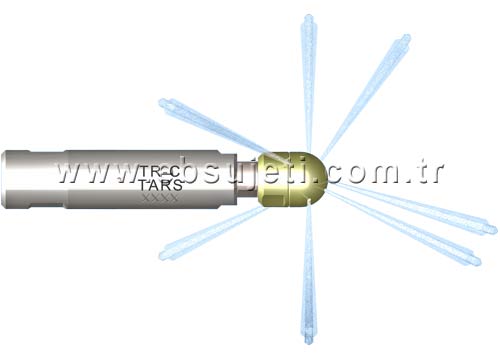

Rotary Hose Nozzle TARS TR-C
TARS TR-C

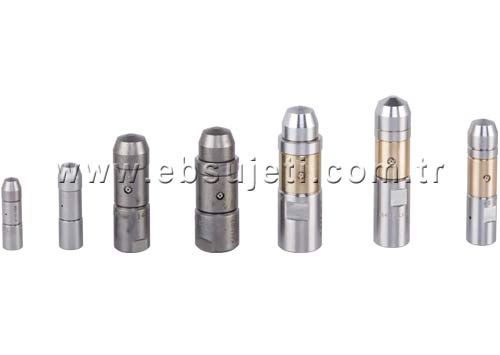

Radial Rotary Hose Nozzle (2 x Radial Jet) Type B

Radial Rotary Hose Nozzle (2 x Radial Jet) Type B

Max. Pressure : 1000, 1500, 2000, 2500 bar

Hose Connection : M7, 1/8", 1/4", 3/8"x24 UNF LH, 14X1.5 LH, M22X1.5

Specifications
  • 2 x Radial Jet
Pdf File
Hose Connection 1000 Bar 1500 Bar 2000 Bar 2500 Bar
M7 Ø10 mm (2x0.8)
90.10.1008		 - - -
1/8" BSP Ø12 mm (2x1.0)
90.10.1210		 Ø15 mm (2x0.8)
90.15.1508

Ø15 mm (2x1.0)
90.15.1510		 - -
1/4" BSP Ø18 mm (2x1.0)
90.10.1810

Ø22 mm (2x1.1)
90.10.2211		 Ø18 mm (2x1.0)
90.15.1810

Ø18 mm (2x1.1)
90.15.1811		 - -
3/8"x24 UNF LH - - Ø15 mm (2x0.6)
90.20.1506		 Ø15 mm (2x0.5)
90.25.1505
14X1.5 LH - - Ø18 mm (2x0.6)
90.20.1806

Ø22 mm (2x0.6)
90.20.2206		 Ø18 mm (2x0.5)
90.25.1805

Ø22 mm (2x0.5)
90.25.2205
1/2" BSP Ø28 mm (2x1.1)
90.10.2811		 Ø28 mm (2x1.1)
90.15.2811		 - -

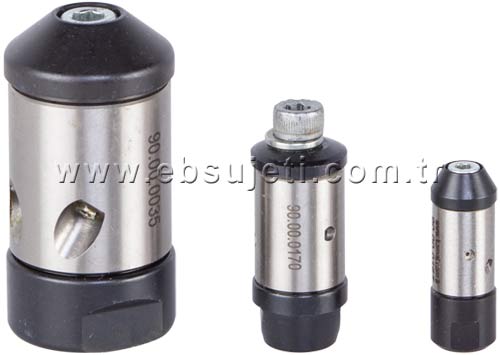

Radial Rotary Hose Nozzle (Universal)(1000 Bar) Type C

Radial Rotary Hose Nozzle (Universal)(1000 Bar) Type C

Max. Pressure : 750, 1000 bar

Hose Connection : M7, 1/8", 1/4"

Specifications
  • ---
Pdf File
◊ ceramic or sapphire insert.
Hose Connection Jet Configuration Hole Diameter Outer Diameter Max. Pressure Max. Flow Rate Part No
mm mm Bar l/min
M7 2 (90°) + 2 Backward 2x0.6 + 2x0.7 11 1000 35 90.00.0130
M7 2 (90°) + 2 Backward 2x0.4 + 2x0.5 11 1000 20 90.00.0020
M7 2 (90°) + 2 Backward 2x0.5 + 2x0.5 11 1000 25 90.00.0166
M7 2 (90°) + 2 Backward 2x0.7 + 2x0.7 11 1000 35 90.00.0167
M7 2 (90°) + 2 Backward 2x0.9 + 2x0.85 11 1000 50 90.45.2341
1/8" 2 (90°) + 2 Backward 2x0.5 + 2x0.5 16 1000 20 90.45.2339
1/8" 2 (90°) + 2 Backward 2x0.7 + 2x0.7 16 1000 35 90.45.2340
1/8" 2 (90°) + 2 Backward 2x1.0 + 2x0.9 16 1000 50 90.00.0170
1/8" 2 (90°) + 2 Backward 2x1.0 + 2x1.0 16 1000 65 90.45.2343
1/4" 2 (90°) - 22 750 50 90.42.0010
1/4" 2 (90°) - 22 750 70 90.42.0020
1/4" 2 (90°) - 22 1000 50 90.42.0030
1/4" 2 (90°) - 22 1000 70 90.42.0040
1/4" 2 (90°) + 2 Backward ◊ 28 1000 ◊ 90.45.2345
1/4" 4 Backward ◊ 28 1000 ◊ 90.00.0035
1/4" 4 (90°) ◊ 28 1000 ◊ 90.00.0092

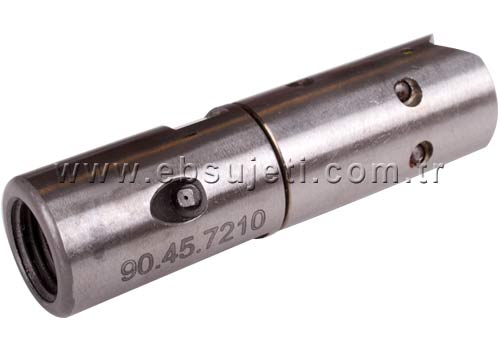

Cross Jet Nozzle (1500 Bar) Type D

Cross Jet Nozzle (1500 Bar) Type D

Max. Pressure : 1500 bar

Hose Connection : M7, 1/8", 1/4"

Specifications
  • Forward, backward and (90°), 3 different jetting configurations in one
Pdf File
Hose Connection Jet Configuration Outer Diameter Max. Flow Rate Part No Description
    mm l/min
M7 2 Forward + 2 (90°) + 3 Backward 9.5 36 90.45.7090 Drilled.
1/8" 2 Forward + 2 (90°) + 3 Backward 12 36 90.45.7100 Drilled.
1/8" 2 Forward + 2 (90°) + 2 Backward 12 52 90.45.7110 Drilled.
1/8" 2 Forward + 2 (90°) + 3 Backward 18 50 90.45.7120 Hardened stainless steel insert.
1/4" 2 Forward + 2 (90°) + 3 Backward 18 50 90.45.7200 Hardened stainless steel insert.
1/4" 2 Forward + 2 (90°) + 3 Backward 18 110 90.45.7210 Hardened stainless steel insert.
1/4" 2 Forward + 2 (90°) + 3 Backward 22 50 90.45.7220 Seramic insert.
1/4" 2 Forward + 2 (90°) + 3 Backward 28 50 90.45.7230 Seramic insert.

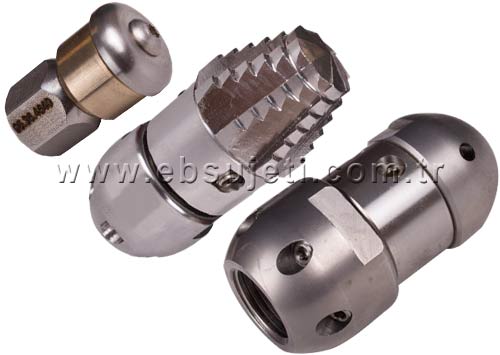

Sewer Cleaning Nozzles Type E

Sewer Cleaning Nozzles Type E

Max. Pressure : 250, 350, 1000 bar

Hose Connection : 1/4", 1/2", 9/16 LH, G1/4 BSPP, 3/8 BSPP

Specifications
  • Nozzles suitable for cleaning sewers of different diameters and specifications
Pdf File
Hose Connection Jet Configuration Outer Diameter Pressure Max. Flow Rate Part No Description
    mm Bar l/min
3/8 BSPP 1 Forward + 2 (90°) + 2 Backward 70 140-1000 49-110 21.01.4010 Insert: AP2 type
1/2" 4 (90°) + 6 Backward 35 350 86 95.23.7975 Hardened stainless steel insert.
1/2" 4 (90°) + 6 Backward 38 350 86 95.25.0375 Hardened stainless steel insert.
9/16 LH 2 Backward + 2 (90°) + 3 Forward 35 830-1500 11-76 90.56.0010 Hardened stainless steel insert.
G1/4 BSPP 2 Backward + 2 (90°) + 3 Forward 35 140-1000 11-57 90.56.0020 Hardened stainless steel insert.
1/4" 3 Backward 18 250 15 95.36.4640 Drilled.
