Pipe Cleaning Nozzles
Our Pipe Cleaning Nozzles are grouped as Type A, Type B, Type C, Type D Hose Nozzles.
You can see the nozzle models and technical specifications of each group under the Pipe Cleaning Nozzle groups below. Contact us, let us know your problems/needs, and we will determine the most suitable Pipe Cleaning Nozzles for your needs.
Contact Us: (+90) 312 394 12 70 (+90) 532 471 29 58 eb@ebsujeti.com.tr

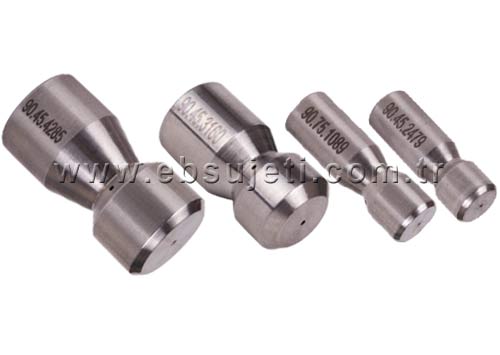

Pipe Cleaning Hose Nozzles (Type A)
| M6 Flexible Hose Nozzle (Outer diameter = 9 mm) | ||||
|---|---|---|---|---|
| Jet Configuration | Hole Diameter | |||
| 0.5 mm | 0.6 mm | 0.7 mm | 0.8 mm | |
| Part No | Part No | Part No | Part No | |
| 3 Backward | - | 90.75.1028 | 90.75.1029 | 90.75.1030 |
| 1 Forward + 3 Backward | 90.75.1087 | 90.75.1088 | 90.75.1089 | 90.75.1090 |
| M7 Flexible Hose Nozzle (Outer diameter = 9.5 mm) | ||||||
|---|---|---|---|---|---|---|
| Jet Configuration | Hole Diameter | |||||
| 0.5 mm | 0.6 mm | 0.7 mm | 0.8 mm | 0.9 mm | 1.0 mm | |
| Part No | Part No | Part No | Part No | Part No | Part No | |
| 2 Backward | - | - | - | - | - | 90.45.2409 |
| 3 Backward | - | 90.45.2417 | 90.45.2418 | 90.45.2419 | 90.45.2420 | 90.45.2421 |
| 4 Backward | - | 90.45.2429 | 90.45.2430 | 90.45.2431 | 90.45.2432 | 90.45.2433 |
| 1 Forward + 2 Backward | - | - | - | - | - | 90.45.2469 |
| 1 Forward + 3 Backward | 90.45.2476 | 90.45.2477 | 90.45.2478 | 90.45.2479 | 90.45.2480 | 90.45.2481 |
| 1 Forward + 4 Backward | - | - | - | 90.45.2491 | - | - |
| 1/8" Flexible Hose Nozzle (Outer diameter = 13.5 mm) | |||||
|---|---|---|---|---|---|
| Jet Configuration | Hole Diameter | ||||
| 0.6 mm | 0.7 mm | 0.8 mm | 0.9 mm | 1.0 mm | |
| Part No | Part No | Part No | Part No | Part No | |
| 3 Backward | 90.45.2785 | 90.45.2790 | 90.45.2795 | 90.45.2800 | 90.45.2805 |
| 4 Backward | 90.45.2845 | 90.45.2850 | 90.45.2855 | 90.45.2860 | 90.45.2865 |
| 1 Forward + 3 Backward | 90.45.3085 | 90.45.3090 | 90.45.3095 | 90.45.3100 | 90.45.3105 |
| 1 Forward + 4 Backward | 90.45.3145 | 90.45.3150 | 90.45.3155 | 90.45.3160 | 90.45.3165 |
| 1/4" Flexible Hose Nozzle (Outer diameter = 17.8 mm) | |||||
|---|---|---|---|---|---|
| Jet Configuration | Hole Diameter | ||||
| 0.6 mm | 0.7 mm | 0.8 mm | 0.9 mm | 1.0 mm | |
| Part No | Part No | Part No | Part No | Part No | |
| 4 Backward | - | - | - | 90.45.3860 | - |
| 1 Forward + 3 Backward | 90.45.4085 | 90.45.4290 | 90.45.4295 | 90.45.4100 | - |
| 1 Forward + 4 Backward | 90.45.4145 | 90.45.4150 | 90.45.4155 | 90.45.4160 | - |
| 1 Forward + 5 Backward | 90.45.4205 | 90.45.4210 | 90.45.4215 | 90.45.4220 | 90.45.4225 |
| 1 Forward + 6 Backward | 90.45.4265 | - | 90.45.4275 | 90.45.4280 | 90.45.4285 |

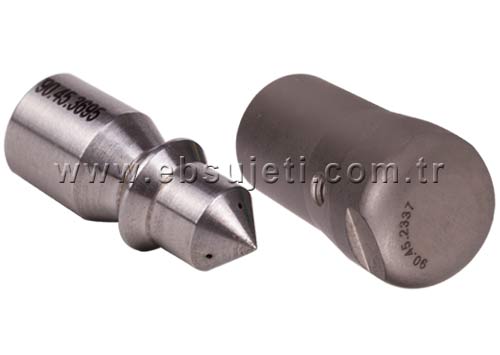

Pipe Cleaning Hose Nozzles Type B
| M7 Flexible Hose Nozzle (Outer diameter = 9.5 mm) | ||||
|---|---|---|---|---|
| Jet Configuration | Hole Diameter | |||
| 0.6 mm | 0.7 mm | 0.8 mm | 1.0 mm | |
| Part No | Part No | Part No | Part No | |
| 2 Forward + 3 Backward | - | - | - | 90.45.2541 |
| 2 Forward + 4 Backward | 90.45.2549 | 90.45.2550 | 90.45.2551 | 90.45.2553 |
| 1/8 Flexible Hose Nozzles ( Outer diameter = 13.5 mm) | |||||
|---|---|---|---|---|---|
| Jet Configuration | Hole Diameter | ||||
| 0.6 mm | 0.7 mm | 0.8 mm | 1.0 mm | ||
| Part No | Part No | Part No | Part No | ||
| 2 Forward + 4 Backward | 90.45.3445 | 90.45.3450 | 90.45.3455 | 90.45.3465 | |
| 3 Forward + 4 Backward | - | 90.45.3695 | - | 90.00.0060 | |
| 1/4 Flexible Hose Nozzles (Sapphire Insert) (Outer diameter = 19.5 mm) | |
|---|---|
| Jet Configuration (Hole Diameter) | Part No |
| 2 (90°) | 90.45.2336 |
| 3 (90°) | 90.45.2337 |
| 4 (90°) | 90.45.2338 |

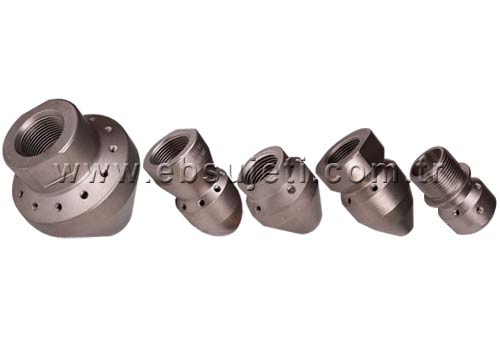

Pipe Cleaning Hose Nozzles Type C
| Pipe Cleaning Hose Nozzles Type C | |||||
|---|---|---|---|---|---|
| Jet Configuration |
Tapa Nozzle Outer diameter = 30 mm |
Kule Type Nozzle Outer diameter = 40 mm |
Minare Type Nozzle Outer diameter = 35 mm |
Mantar Type (Middle) Outer diameter = 39 mm |
Mantar Type (Big) Outer diameter = 63 mm |
| Part No | Part No | Part No | Part No | Part No | |
| 3 Backward | 90.00.0173 | - | - | - | - |
| 4 Backward | 90.00.0174 | - | - | 90.00.0229 | - |
| 5 Backward | 90.00.0175 | - | - | 90.00.0021 | - |
| 6 Backward | 90.00.0176 | - | - | 90.45.2316 | - |
| 8 Backward | - | - | - | 90.45.5815 | - |
| 12 Backward | - | - | - | - | 90.45.5915 |
| 1 Forward + 3 Backward | 90.00.0177 | - | - | - | - |
| 1 Forward + 4 Backward | 90.00.0178 | 90.00.0071 | 90.00.0070 | - | - |
| 1 Forward + 5 Backward | 90.00.0179 | 90.00.0073 | 90.00.0072 | - | - |
| 1 Forward + 6 Backward | 90.00.0180 | 90.00.0075 | 90.00.0074 | - | - |
| 1 Forward + 8 Backward | - | 90.00.0077 | 90.00.0076 | - | - |
| 3 (90°) + 4 Backward | 90.00.0181 | - | - | - | - |
| 4 (90°) + 4 Backward | 90.00.0182 | - | - | 90.45.5810 | - |
| 1 Forward + 3 (90°) + 4 Backward | 90.00.0183 | - | - | - | - |
| 1 Forward + 4 (90°) + 4 Backward | 90.000231 | 90.45.2314 | 90.45.2315 | - | - |

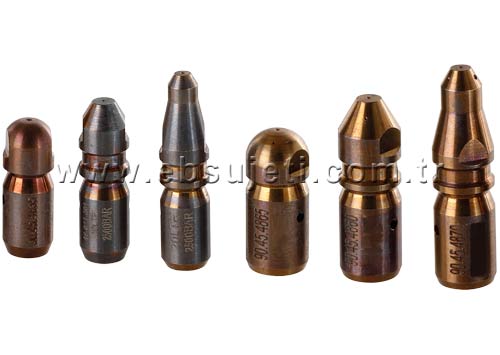

Pipe Cleaning Hose Nozzles Type D
| Nozzle Type | Hose Connection | Jet Configuration |
ø mm |
Flow Rate (l/min) |
Pressure (Bar) |
Part No | Description |
|---|---|---|---|---|---|---|---|
| Short Type | 1/4x28 UNF RH | 1 Forward +3 Backward | 9.5 | 34 | 2000 | 90.00.0163 | The spray holes are drilled. |
| Medium Type | 1/4x28 UNF RH | 1 Forward +3 Backward | 9.5 | 34 | 2000 | 90.00.0164 | The spray holes are drilled. |
| Long Type | 1/4x28 UNF RH | 1 Forward +3 Backward | 9.5 | 34 | 2000 | 90.00.0165 | The spray holes are drilled. |
| Short Type | 1/4x28 UNF RH | 1 Forward +3 Backward | 9.5 | 30 | 2500 | 90.45.4800 | The spray holes are drilled. |
| Medium Type | 1/4x28 UNF RH | 1 Forward +3 Backward | 9.5 | 30 | 2500 | 90.45.4805 | The spray holes are drilled. |
| Long Type | 1/4x28 UNF RH | 1 Forward +3 Backward | 9.5 | 30 | 2500 | 90.45.4810 | The spray holes are drilled. |
| Medium Type | 1/4x28 UNF RH | 1 Forward +3 Backward | 9.5 | 33 | 2500 | 90.45.4815 | The spray holes are drilled. |
| Short Type | 1/4x28 UNF RH | 1 Forward +3 Backward | 9.5 | 33 | 2500 | 90.45.4820 | The spray holes are drilled. |
| Long Type | 1/4x28 UNF RH | 1 Forward +3 Backward | 9.5 | 33 | 2500 | 90.45.4825 | The spray holes are drilled. |
| Medium Type | 1/4x28 UNF LH | 1 Forward +3 Backward | 9.5 | 20 | 2500 | 90.45.4830 | The spray holes are drilled. |
| Short Type | 1/4x28 UNF LH | 1 Forward +3 Backward | 9.5 | 20 | 2500 | 90.45.4835 | The spray holes are drilled. |
| Long Type | 1/4x28 UNF LH | 1 Forward +3 Backward | 9.5 | 20 | 2500 | 90.45.4840 | The spray holes are drilled. |
| Medium Type | 1/4x28 UNF LH | 1 Forward +3 Backward | 9.5 | 25 | 2500 | 90.45.4845 | The spray holes are drilled. |
| Short Type | 1/4x28 UNF LH | 1 Forward +3 Backward | 9.5 | 25 | 2500 | 90.45.4850 | The spray holes are drilled. |
| Long Type | 1/4x28 UNF LH | 1 Forward +3 Backward | 9.5 | 25 | 2500 | 90.45.4855 | The spray holes are drilled. |
| Short Type | 3/8x24 UNF LH | 1 + 3 Forward + 6 Backward | 12 | 30 | 2500 | 90.45.4860 | The spray holes are drilled. |
| Short Type | 3/8x24 UNF LH | 1 + 3 Forward + 6 Backward | 12 | 30 | 2500 | 90.45.4865 | The spray holes are drilled. |
| Long Type | 3/8x24 UNF LH | 1 + 3 Forward + 6 Backward | 12 | 30 | 2500 | 90.45.4870 | The spray holes are drilled. |
