High Pressure Protective Boots (Max. 500 Bar, 3000 Bar)

Our High Pressure Protective Boots are of two types, with a maximum protection of 500 bar and a maximum of 3000 bar.

You can see the documents of our High Pressure Protective Boots from the links below.

Contact us, let us know your problems/needs, and we will determine the most suitable High Pressure Protective Boots for your needs.

Contact Us:   (+90) 312 394 12 70      (+90) 532 471 29 58      eb@ebsujeti.com.tr

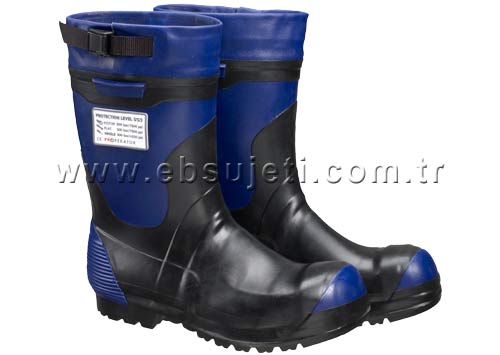

High Pressure Protective Boot (Max. 500 Bar)

High Pressure Protective Boot (Max. 500 Bar)
Size Part No
36 92.50.0036
37 92.50.0037
38 92.50.0038
39 92.50.0039
40 92.50.0040
41 92.50.0041
42 92.50.0042
43 92.50.0043
44 92.50.0044
45 92.50.0045
46 92.50.0046
47 92.50.0047
48 92.50.0048
Max. Pressure : Up to 500 bar
Flow Rate : 16.9 l/min
Specifications
  • Protective Boots CE Certified for High Pressure Cleaning and tested for High Pressure Hydraulic Fluid. Resistant to water jets up to 500 bar and waterproof.
  • Completely vulcanized rubber boots with reinforcement to withstand pressurized liquids on the whole foot (black parts).
  • Fitted with steel toecap and steels inserts to withstand sharp objects from under.
  • Textile inner lining for good comfort
  • The sole is designed for good grip and to reduce the risk of slipping.
  • The boot shaft can be tightened with an adjustable strap.
Pdf File
Protection Level Pressure Flow Rate
Nozzle Type Distance Speed Result
Bar l/min mm m/s
5/5/2 500 16.9 Rotor - Rotary jet 75 0.5 No penetration
5/5/2 500 16.9 Flat - Single fan jet 15° 75 0.5 No penetration
5/5/2 500 10.7 Single - Single round 75 0.5 No penetration

High Pressure Protective Boot (Max. 3000 Bar)

High Pressure Protective Boot (Max. 3000 Bar)
Size Part No
42 92.00.0310-42
43 92.00.0310-43
44 92.00.0310-44
45 92.00.0310-45
46 92.00.0310-46
47 92.00.0310-47
48 92.00.0310-48
Max. Pressure : Up to 3000 bar
Debi : 16.2 l/min
Specifications
  • Withstands “everything” within waterjetting on account of it's fixed aluminium gaiters.
  • The gaiters are moulded and jointed, which gives both excellent comfort and mobility.
  • The Boots conform to the requirements set out in BGR 191 and EN 345-1 99A5 S5.
Pdf File
Tested and certified according to BGR 191. CE marking : Approved according to the directive 89/686/EEC and BGR 191.
Pressure Flow Rate
Nozzle Distance Between Nozzle and Boots Nozzle Speed Reactions Force
(N)
Bar l/min mm m/s
1700 20.0 Round
1 mm		 75 0.2 250
2500 19.0 Turbo
0,8 mm		 75 0.2 227
3000 19.0 Rotary
3x0,5 mm		 75 0.2 243
3000 16.2 Round
0,8 mm		 75 0.2 207
